SOLUTION 1WASTEWATER TREATMENT, WW SERIES

Sewage treated where it is made.

VGW-BF BIOLOGICAL TREATMENT · 10 TO 600 CUBIC METERS A DAY

A proven, self-contained treatment plant for sanitary sewage, built on the Vertical Green Wall Bio-Filter method. It serves sources with no power and no sewer connection, and returns effluent that meets the Israeli standard for irrigation.

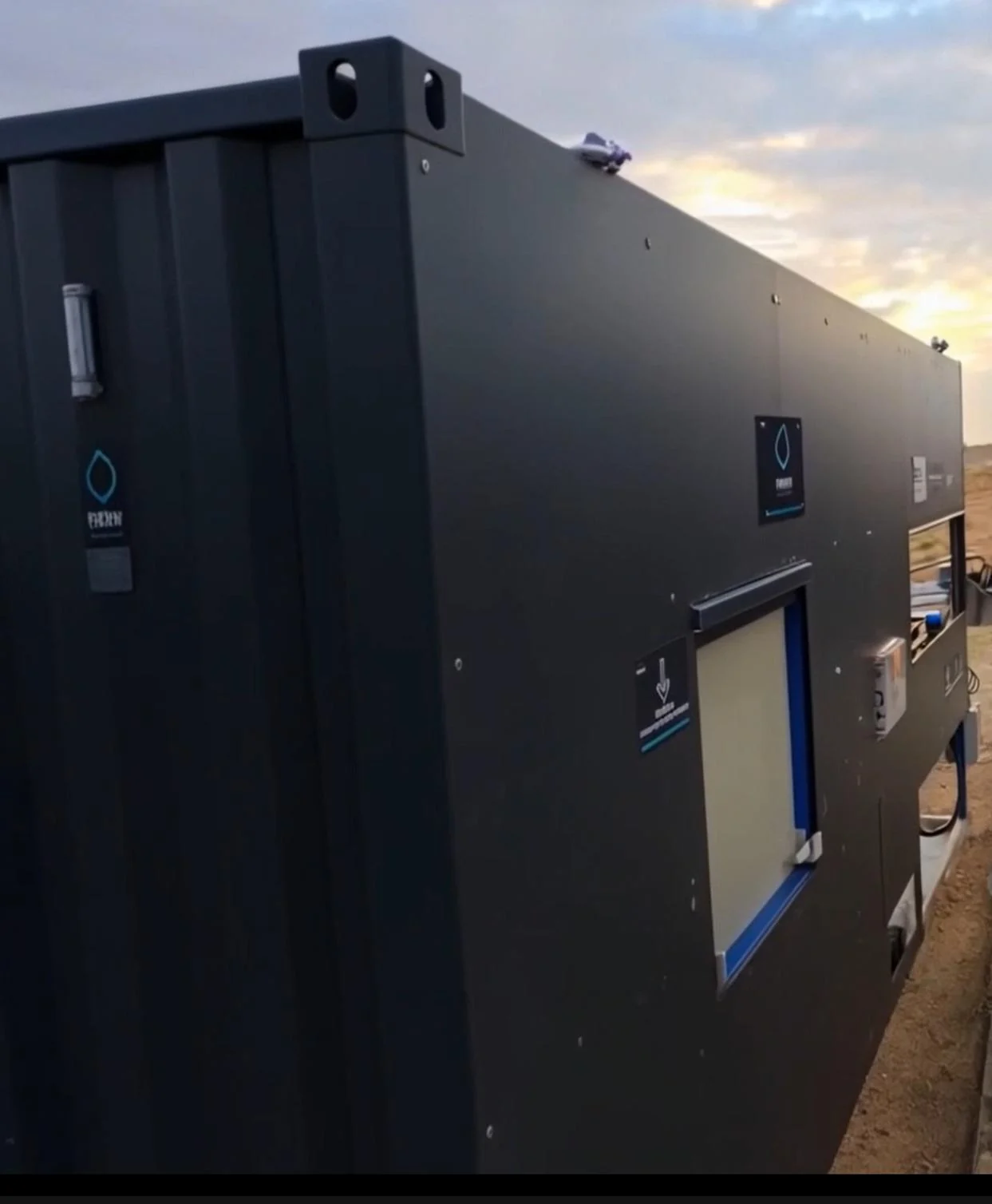

A black INFRABOX treatment unit standing on its pad at sunset, its corner casting and door placards against a clouded sky.

WHAT ARRIVES WITH THE SYSTEM

COMPONENTWHAT IT COVERS
Treatment unitThe complete process inside the INFRABOX unit, filters and UV included.
PumpsSewage and circulation pumps for every stage of treatment.
SensorsLevel gauge and control sensors for tanks, process and water quality.
Suction line32 mm line, up to 50 m from the septic tanks.
Energy packageFour solar panels, 16 kW storage, generator connection.
Reuse line200 m sleeved drip line, 20 mm, or an infiltration bore to 4 m.

Three septic tanks belong to the site's sewage infrastructure and are provided by the site.

PREPARED PAD BY CAPACITY, LONG SIDE FACING SOUTH

CAPACITY m3 A DAYPAD METERS
5-108 x 5
208 x 5
308 x 5
5010 x 5
6012 x 10
12012 x 12
Request a site surveyDownload the portfolio

02THE TREATMENT PROCESS

From sewage to reclaimed water.

Multi-stage biological treatment: anaerobic digestion, an aerated bio-reactor and a vertical biological wall, finished with UV disinfection and metering.

  1. 01

    INTAKE

    Raw sewage flows in from the septic tanks.

  2. 02

    GRAVITY SEPARATION

    Primary breakdown and solids separation across three tanks.

  3. 03

    SEWAGE PUMP

    Controlled transfer into biological treatment.

  1. 04

    AIR-LIFT BIO-REACTOR

    Anoxic and aerobic zones with air blowers.

  2. 05

    TUBE CLARIFIER

    Settling and secondary sludge separation.

  3. 06

    VGW-BF BIO WALL

    A vertical wall with aerobic and algae activity.

  1. 07

    FILTER AND UV

    Disinfection with no chemicals.

  2. 08

    FLOW METER

    Effluent output is measured and logged.

  3. 09

    REUSE

    Water to standard, for controlled irrigation or infiltration.

03ENERGY AND CONTROL

Solar, storage and a control room, on the pad.

A blue-framed solar array tilted toward the sun beside a black INFRABOX treatment unit on a cut desert pad.

HYBRID CONTROLLER

Accepts energy from solar, a generator or the grid, in any mix.

BATTERY STORAGE

16 kW standard, scalable to 1 MW and beyond.

CONTROL UNIT

Electrical cabinet with cyber-secured control and protection.

REMOTE LINK

Cellular communication and microgrid behavior.
SOLAR
GENERATOR
GRID
HYBRID INVERTER
BATTERY
SYSTEM LOADS
Solar, generator and grid into the hybrid inverter, to the battery and the system loads.

REAL-TIME ALERTS

Faults and exceptions are flagged the moment they happen.

NO PERMANENT PRESENCE

Remote monitoring with no standing crew.

FIVE MONTHS OF DATA

System data kept for analysis and tracking.

680 W

PANEL OUTPUT

25.2%

MODULE EFFICIENCY

30 YR

LINEAR PERFORMANCE WARRANTY

0.35%

MAX ANNUAL DEGRADATION, YEARS 2 TO 30

04IN THE FIELD

Installed and operating in field conditions.

A black INFRABOX unit with its solar panel folded against the side, hanging on crane chains over wet ground between white site cabins.
CRANED ONTO THE PREPARED PAD
A blue-framed solar array beside an INFRABOX unit and two black water tanks standing on concrete pads in sand.
SOLAR ARRAY AND STORAGE TANKS

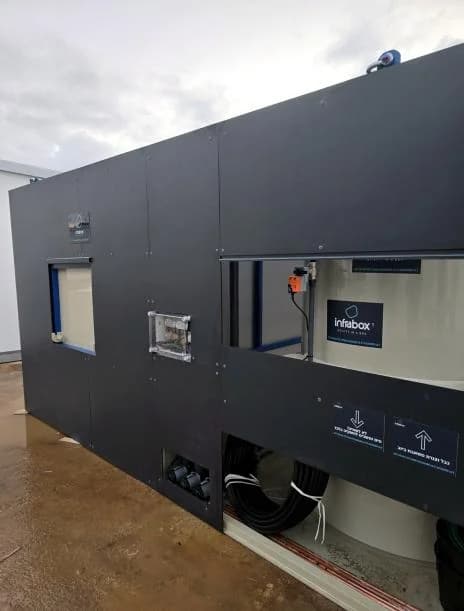

The rear service face of an INFRABOX unit with its access hatch open and bundled conduits running out to the pad.
SERVICE CONNECTIONS AT THE UNIT
An INFRABOX unit and its tilted solar array on a graded site, with a crew in hi-vis vests and a service truck behind.
OPERATING AT A FORWARD SITE

05THE CARE FRAMEWORK

One care framework for the system life.

Monthly maintenance and warranty per system, priced by capacity in the quotation.

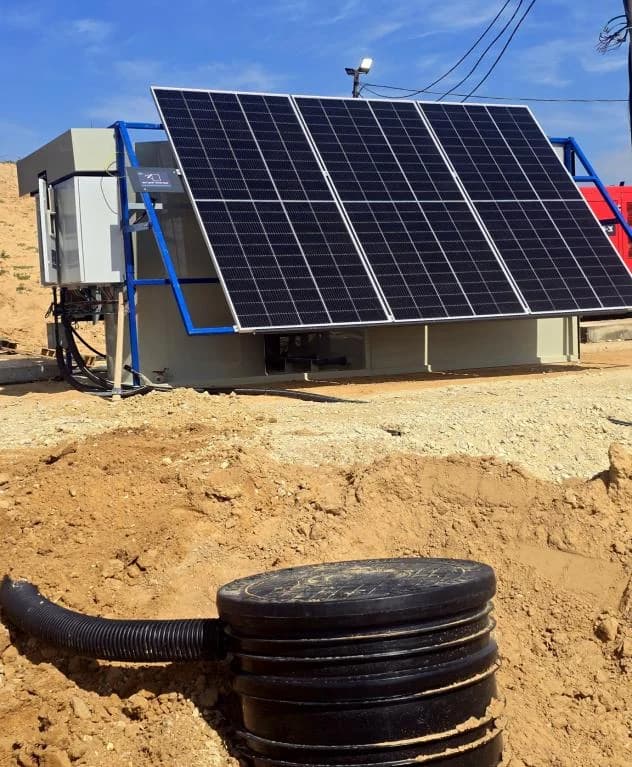

A blue-framed solar array tilted over an INFRABOX unit on a sand pad, with the site's power line running overhead.

INCLUDED

Maintained

  • Control and command panel
  • Pumps and circulation
  • Sensors and monitoring
  • Biological process equipment
  • Valves, piping and energy supply

INCLUDED

Service

  • Remote technical support
  • Continuous monitoring, five months of data
  • Automatic fault alerts and remote diagnosis
  • Certified technician visits
  • Operator training as an alternative

SITE RESPONSIBILITY

Excluded

  • Solids removal, twice a year
  • Vandalism or physical damage
  • Vehicle and machinery strikes
  • Use outside the operating manual
  • Unapproved equipment or changes

In excluded cases the customer covers parts, labor and transport to return the system to service.
